所有產品

潤原 RYJ-SP系列塑料片材擠出機

價格:
$68000-$88000
分類:
擠出片材機
發布時間:
2020-03-28
加入購物車
立即購買
-

RYJ-SP Series Plastic Sheet Extruding Machine

RYJ-SP系列塑料片材擠出機


Structural characteristics: 結構特性



●RYJ-SP Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PE, PS, HIPS sheet etc. RYJ-SP系列塑料片材擠出機是根據市場需求研制的,主要用于生產PP、PE、PS、HIPS等片材


The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed. 擠出機的螺桿采用大長徑比,成形效果好,片材厚度均勻,運行速度一致


This machine includes screw extruder, 3-roller calandar, traction rewinder. 本機包括螺桿擠出機、三輥壓延機、牽引復卷機


Three rollers controlled by three motors separately. 三個輥筒分別由三個電機控制


Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.壓輥表面光亮,表面溫度均勻,確保壓片清潔,厚度均勻

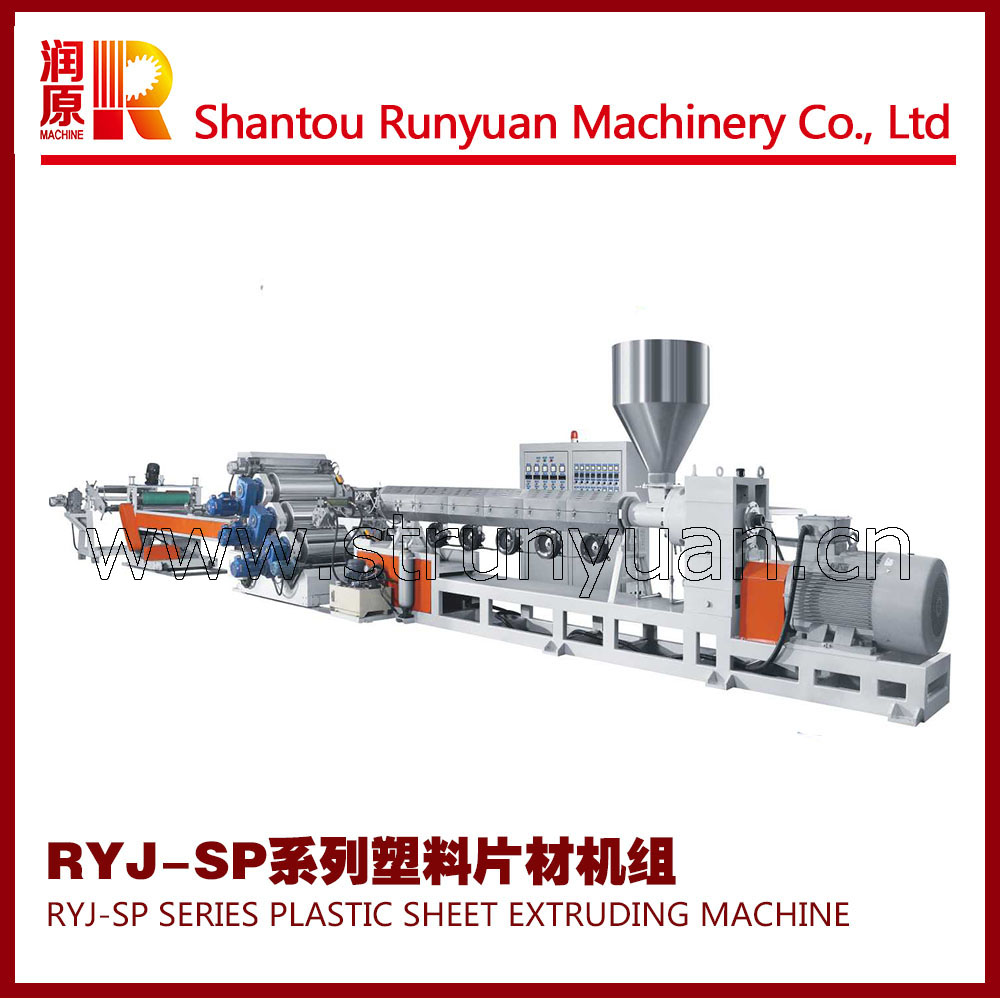

Machine Picture: 機器圖片


Parameter: 參數

MODEL

型號

RYJ-SP-900-105

RYJ-SP-900-110

RYJ-SP-900-120

Roller Length

輥筒長度

320*900mm

420*900mm

420*900mm

Sheet Width

片材寬度

750mm

750mm

750mm

Sheet Thickness

片材厚度

0.3-2.0mm

0.3-2.0mm

0.3-2.0mm

Screw Diameter

螺桿直徑

105mm

110mm

120mm

Screw Length-Diameter Ratio

螺桿長度-直徑比

1:33

1:34

1:35

Total Power

總功率

110kw

120kw

145kw

Heating Power

加熱功率

45kw

60kw

70kw

Max. Output

*輸出

220kg/h

250kg/h

350kg/h

Dimension

尺寸

12×1.8×2 (m)

12.5×1.8×2 (m)

13×1.8×2 (m)

Total Weight

總重量

8T

9T

10T

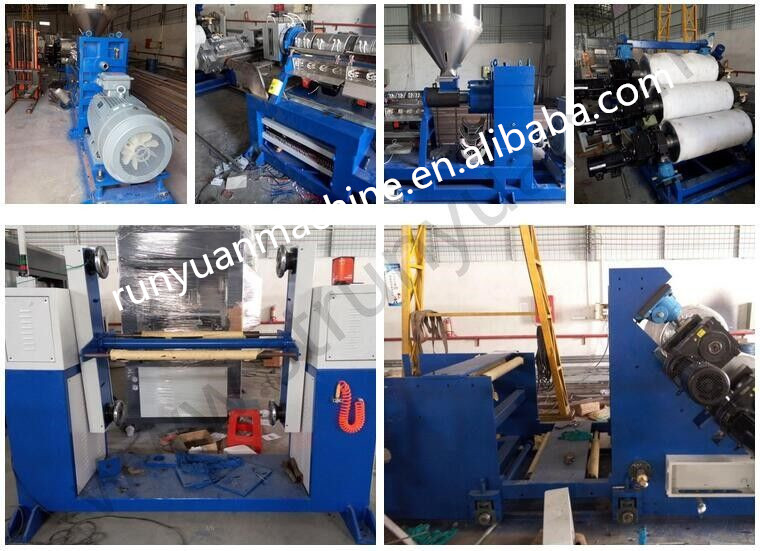

Machine Produce Picture: 機器生產圖片

Plastic Extrusion Machine

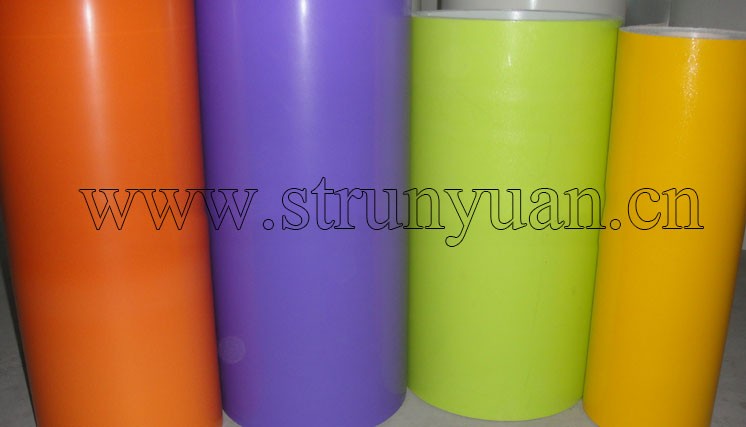

Sheet Samples Picture:片材樣品圖片

Plastic Extrusion Machine

Plastic Extrusion Machine

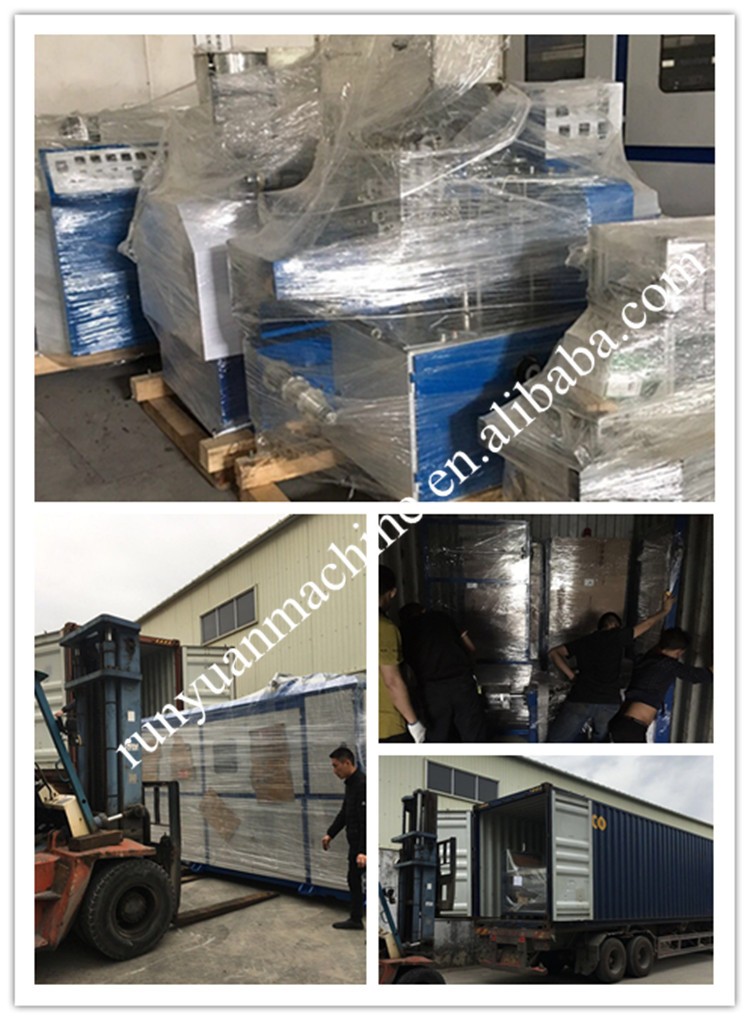

Loading & Delivery:裝貨出柜

Plastic Extrusion Machine

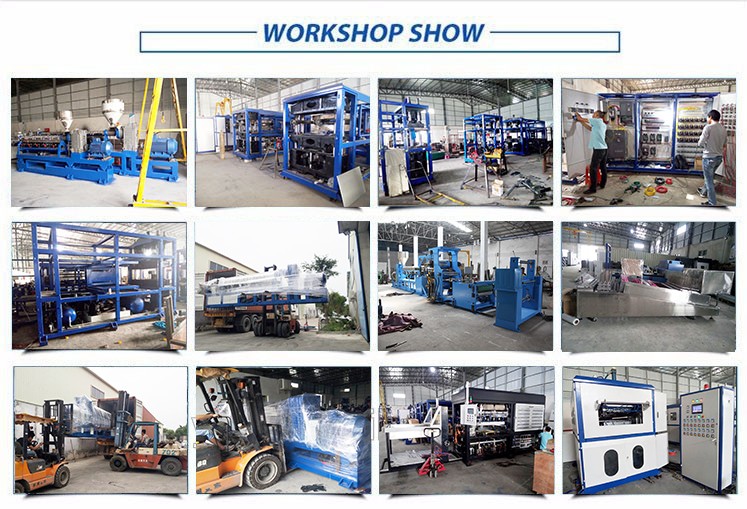

Factory Workshop: 工廠車間

Plastic Extrusion Machine

Contact Information: 聯系信息















-
